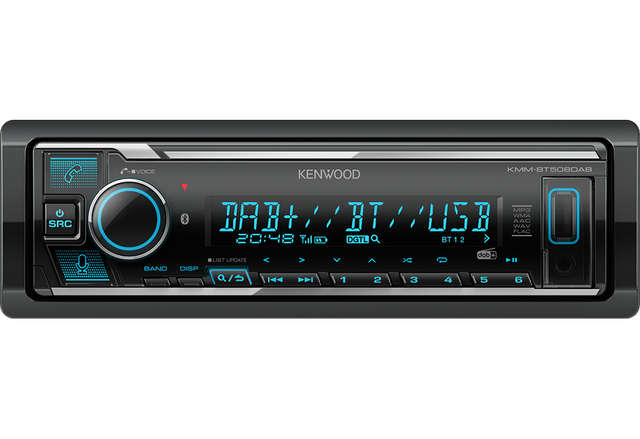

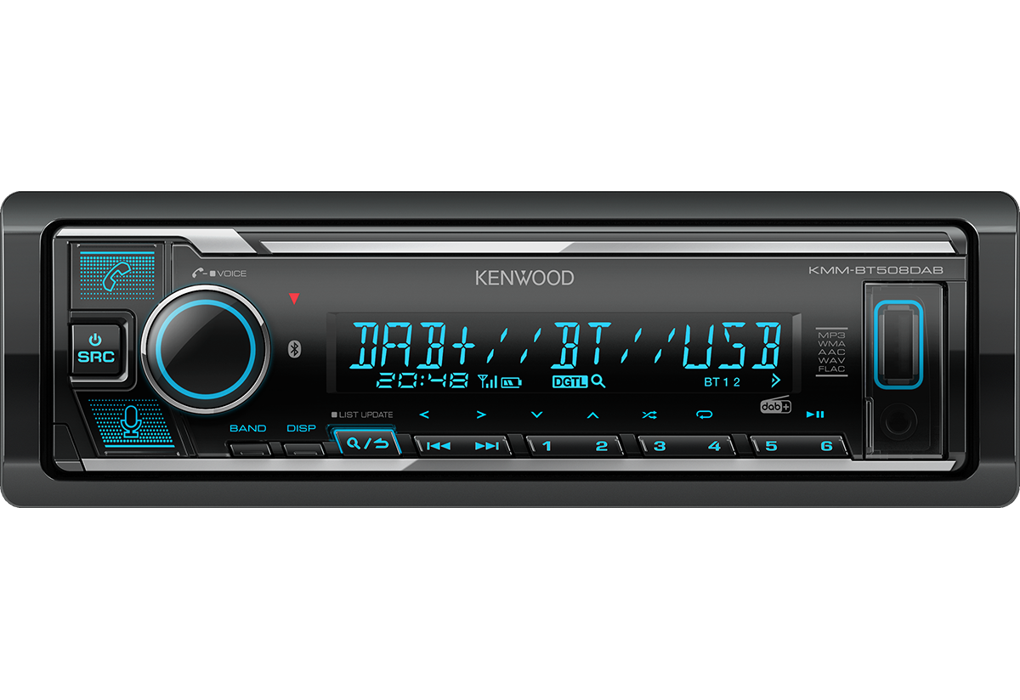

Kenwood KMM-BT508DAB - Digital Media Receiver DAB Bluetooth Stereo Alexa Ready

Key Features

• Bluetooth hands-free calls and music streaming.
• DAB+ Digital radio, analogue FM radio with RDS functionality and AM radio reception.
• Amazon Alexa cloud-based voice service ready.
• Dual Phone Connection switches automatically between the 2 paired phones for incoming calls.
• Use your smartphone like a wireless remote control with the KENWOOD Remote app.
• MP3 / WMA / AAC / WAV / FLAC music file playback.
• DSP, DTA and 13-Band EQ for optimal sound tuning enhancements.
• 2 high power (2,5V) RCA preouts to connect multiple power amplifiers.
• Wide 1,5 line LCD display with high contrast, wide viewing angle & variable colour backlight.
• Short body (100mm) for easy installation

General Features

• DIN Size 1 DIN
• Detachable Faceplate
• Key Illumination Variable LED
• Rotary Encoder & Control Knob
• Dual Accent Key Handsfree & Audio Streaming
• Back-up Memory Tuner presets & menu settings
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Digital Clock (24H)
• Clock display when power-off default off
• All-off Select (20/40/60 minutes)
• Built-in Connector Mitsumi, 16 pin
• ISO connector, Mitsumi to ISO cable
• Bluetooth unit built-in
• USB interface x 1, (Front)
• Firmware upgreadable
• Mechless receiver
• Short body

Tuner Features

• Station Select Manual / Preset
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
• Preset memory w/o back-up power
• Mixed preset memory (FM & AM) 6 presets
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

USB Features

• USB terminal, Front with dust cover
• USB Type 2.0 High speed
• MP3, WMA, AAC, WAV, FLAC playback
• Repeat/Scan/Random search
• Repeat / Random Play
• Direct search
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

iPod Features

• Made for iPod & iPhone *
• USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
• Music playback
• Alphabet search
• Skip search
• Related search
• Direct Search
• iPod EQ Mode
• Control by hand
• App & iPod control mode
• Spotify App Link
• iAP over Bluetooth
• iTunes Radio App iAP1
• Reverse browsing
• Battery charge + power control
• * Always update to latest Apple firmware

Audio Features

• Maximum Output Power 50W x 4
• MOSFET Power IC
• Auxiliary Type Mini-jack, front panel
• Pre-out 2 RCA
• Pre-out Output Level 2.5V
• Preout Rear / Subwoofer Switchable
• Subwoofer Reference Level Adj.
• 2-Way X'over network
• 3-Way x'over (bi-amp connection)
• Tone Control / Easy EQ 13 band, 8 presets
• Balance/Fader/Loudness Control
• Bass Boost Circuit Off/+1/+2/+3/+4/+5
• Att.(-20dB) with smooth Volume Return
• Easy 3-band EQ mode
• Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in
• Digital Time Aligment (DTA)
• Low- & High-pass Filter
• Speaker Size Control, Front/rear/subwoofer independently
• Kenwood Sound Reconstruction
• Sound Reconstruction
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ

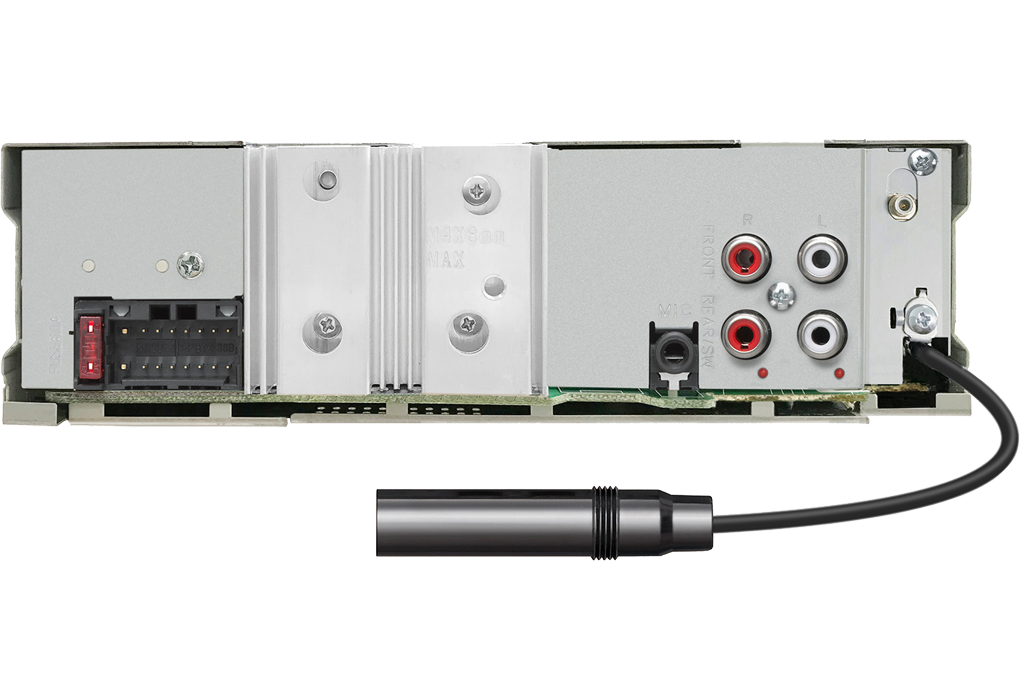

Connectivity

• Front USB & AUX Input
• OEM Wired Remote Control ready
• DC-Cord Mitsumi to ISO
• Power Control (P.CON) wire
• Amplifier pre-out 2 x RCA: Front + Rear/Sub (selectable)
• FM Antenna Input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

USB Specifications

• USB Version compatibility USB 1.1 / 2.0 full speed
• File System FAT 32 / 16 / 12
• Maximum Supply current 1500mA
• D/A Converter 24bit
• MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode Compliant with Windows Media Audio
• AAC Decode "m4a" & "aac" file encoded by AAC-LC format
• WAV Decode Linear - PCM Files
• flac Decode FLAC files up to 96kHz/24bit

Accessories

• Release keys 2 pieces
• Escutcheon
• Installation Sleeve
• DC cord (Mitsumi to ISO) 15 cm
• DAB antenna with 3 m cable
• Handsfree Microphone with 3 m cable
