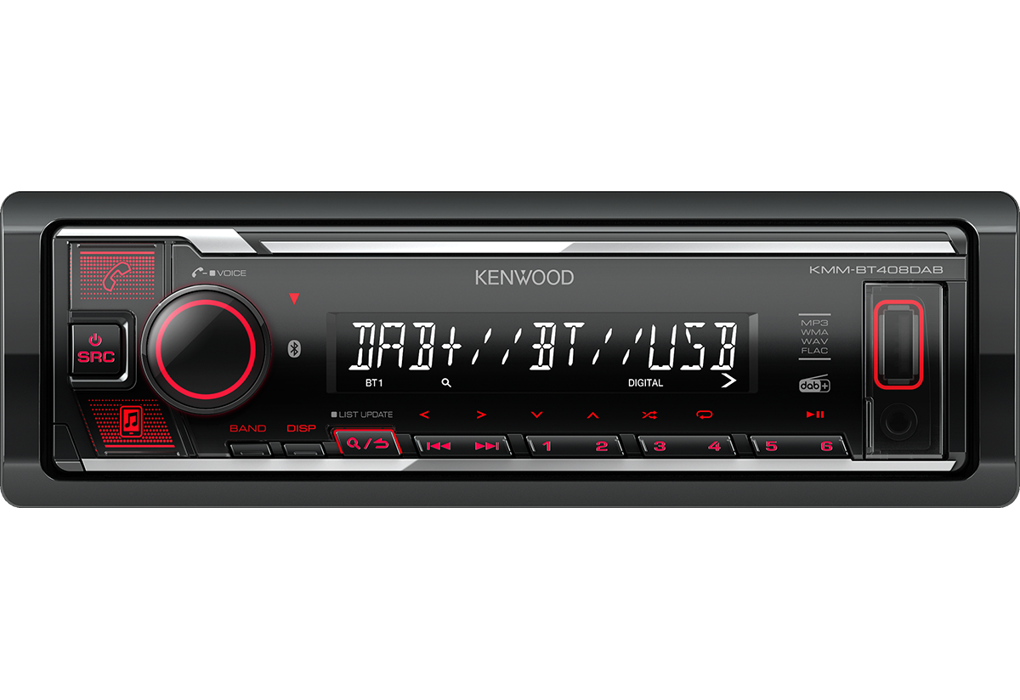

Kenwood KMM-BT408DAB - Mechless Media Player Bluetooth DAB USB Car Stereo

General Features

• DIN Size 1 DIN
• Detachable Faceplate
• Key Illumination Red LED
• Rotary Encoder & Control Knob
• Dual Accent Key Handsfree & Audio Streaming
• Back-up Memory Menu Settings
• Touch Sensor Tone
• Digital Clock (24H)
• Clock display when power-off default off
• All-off Select (20/40/60 minutes)
• Built-in Connector Mitsumi, 16 pin
• ISO connector, Mitsumi to ISO cable
• Bluetooth unit built-in
• USB interface x 1
• Firmware upgradable
• Mechless receiver
• Short body

Display Features

• Display Type    Liquid Crystal Display (LCD)
• Display Layout 1 line 13 Segments x 13 Digit
• Vertical Aligment Liquid Crystal Display
• Display Illumination White (LED)
• Dimmer Control Manual / Set by Timer
• Brightness control 0 - 31 steps
• Demo Mode
• Menu text in selectable language English(default) / Spanish / French / Russian
• TAG Language Display English, Spanish, Russian & Greek

Cosmetics features

• Front/edge Black Injection
• Dress plate Black Injection
• Preset key finish Black Injection
• Escutcheon finish Black Injection
• Triangle Illumination Red LED
• Front terminals dust cover
• Key illumination Red LED
• Illuminated front USB port Red LED
• Display illumination White LED
• Brightness Control (Key) 0 - 31 step
• Brightness Control (Display) 0 - 31 step
• Dimmer Control (Key) Manual / Set by Timer
• Dimmer Control (Display) Manual / Set by Timer

Tuner Features

• Station Select  Manual / Preset
• Tuner preset/recall key
• FM Reception
• AM (MW/LW) Reception
• Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
• Preset memory w/o back-up power
• Mixed preset memory (FM & AM) 6 presets
• Tuning mode   Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB tuner features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek, (Service, Ensemble & Component)
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 6 ch * 3 bank presets,
• Service list by alphabet order
• Preset list
• Alphabet Search
• Related service
• Audio interrupt standby by PTY
• Audio interrupt standby by announcement
• DAB-RDS integrated TI
• Traffic Information
• DAB priority
• PTY (Programme Type) search
• PTY (Programme Type) watch
• Soft linking
• Antenna power supply on/off switch
• DAB antenna included, SMB terminal
• Playable Audio File
• MP3 files are playable USB
• WMA (.wma) files are playableUSB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

USB Features

• USB terminal, Front with dust cover
• USB Type USB 1.1/USB 2.0 Full Speed
• Drive Change
• WMA (Windows Media File) playback
• WAV (Waveform Audio Format) playback
• FLAC (Free Lossless Audio Codec) playback
• Repeat / Random Play
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

Audio Features

• Maximum Output Power 50W x 4
• MOSFET Power IC
• Auxiliary input Yes, Front, Mini-jack
• Pre-out 1 RCA
• Pre-out Output Level 2.5V
• Preout Rear / Subwoofer Switchable
• Subwoofer Reference Level Adj.
• 2-Way X'over network
• 3-Way x'over (bi-amp connection)
• Balance/Fader/Loudness Control
• Loudness Control Off / LV1/ LV2
• Bass Boost Circuit Off/+1/+2/+3/+4/+5
• Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
• Digital Sound Processor (DSP) Built-in
• Digital Time Aligment (DTA)
• Low- & High-pass Filter
• Speaker Size Control
• Sound Reconstruction
• Space Enhancer
• Realizer
• Stage EQ
• Drive EQ
• Sound Elevation

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 5 phones
• Hands Free Profile with High Sound Quality  HFP V1.7.1
• 2 phones full time connection
• High Quality Audio Streaming SBC
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)
• Easy pairing function
• Android automatic pairing via USB
• KENWOOD Remote App Ready Android only, available in Play store
• KENWOOD Music Mix Support
• Private mode
• Interrupt call request
• Alphabet Search (Phonebook)
• Voice Control
• Phone device status display
• Audio device status display
• Signal strength display
• Remaining battery display
• Bluetooth Paring Indicator
• High-quality noise canceling microphone Included (rear wired)
• Bluetooth firmware upgradeable, Included in system updates
• * depends on phone model/make & Kenwood unit

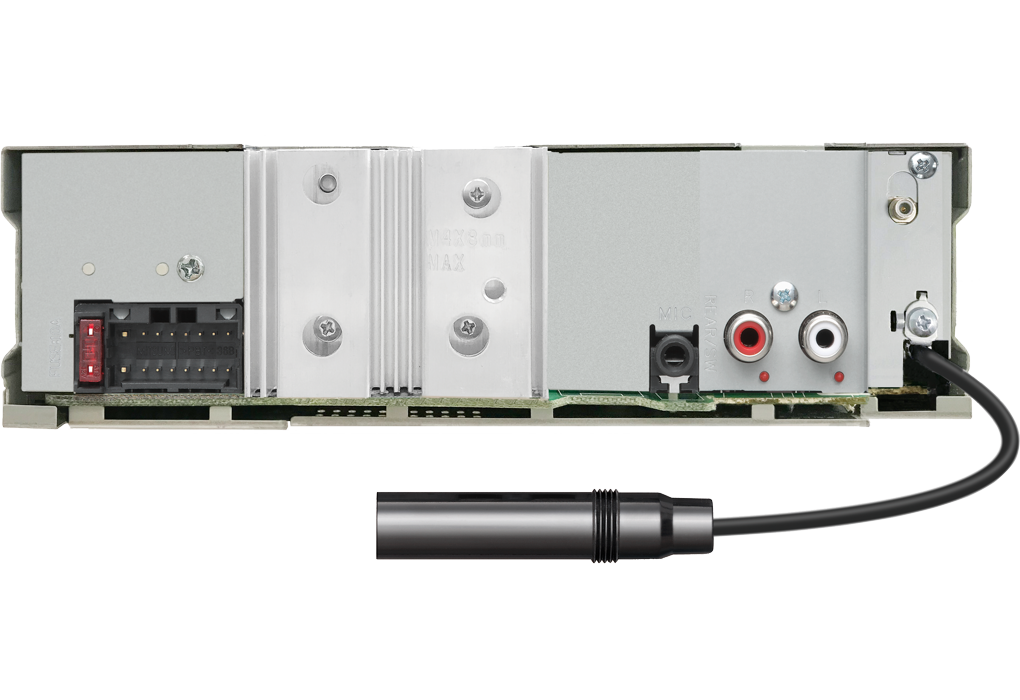

Connectivity

• Front USB & AUX Input
• OEM Wired Remote Control ready, Optional interface needed
• DC-Cord NEW Mitsumi to ISO
• Power Control (P.CON) wire
• 2-way (Tel/Navi) mute wire
• FM Antenna Input
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack
• Tuner Specifications
• FM range: 87.5Mhz - 108MHz (50Khz step)   Yes
• FM Usable Sensitivity 0.56μV/75ohm (S/N 30dBf)
• FM Quieting Sensitivity 1.58μV/75ohm (S/N 46dBf)
• FM Frequency Response 30Hz ~ 15kHz (± 3dB)
• FM Signal to noise ratio (Mono) 68dB
• FM Stereo Separation (1kHz) 40dB
• MW range: 531kHz - 1611kHz (9kHz step)
• MW Usable Sensitivity 28.5μV
• LW range: 153kHz - 279kHz (9kHz step)
• LW Usable Sensitivity 45μV

DAB Tuner specifications

• Band III - Frequency range 174.928 MHz - 239.2MHz
• Mode  I, II, III, IV
• Sensitivity - 100dBm
• Signal to noise ratio 90dB
• DAB Aerial Connector Type SMB
• Output Voltage 12V (11V to 16V allowable)
• Maximum Current < 100 mA

USB Specifications

• USB Version compatibility USB 1.1 / 2.0 full speed
• File System FAT 32 / 16 / 12
• Maximum Supply current 1500mA
• MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
• WMA Decode Compliant with Windows Media Audio
• WAV Decode   Linear - PCM Files
• flac Decode FLAC files up to 96kHz/24bit
• Frequency Response  20Hz - 20kHz
• S/N Ratio 99 dB (1kHz)
• Dynamic Range 93dB
• Channel Separation 90dB

Audio Specifications

• Maximum Power 50W x 4
• Output Power (DIN45324,+B=14.4v) 22W x 4
• Preout Level 2500mV / 10kOhm,
• Preout Impedance ≤ 600Ohm
• Speaker Impedance 4Ohm ~ 8Ohm
• AUX Frequency Response 20Hz ~ 20kHz (±1dB)
• AUX Maximum Input Voltage 1000mV
• AUX Input Impedance 30kOhm
• Graphical Equalizer 13-Band
• G. EQ. Frequency (Hz) 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
• G. EQ. Gain (dB) -7 / ... / +7
• Subwoofer Level (dB) -50 dB to +10dB

Bluetooth specifications

• Technology Bluetooth V4.2
• Frequency 2.402 - 2.48 GHz
• Output power +4dBm(max), power class 2
• Maximum range Line of sight approx. 10 meter
• Handsfree profile (HFP), V1.7.1
• Serial port profile (SPP
• Advanced audio distribution profile (A2DP)
• Audio Codec SBC
• Audio/Video remote control profile (AVRCP) Yes, V1.6.1
• Phonebook access profile (PBAP)

Accessories

• Release keys 2 pieces
• Escutcheon
• Installation Sleeve
• DC cord (Mitsumi to ISO) 20 cm
• DAB antenna with 3 m cable
• Handsfree Microphone with 3 m cable
• Multi-Language Instruction Manual Included Quick-Guide
• Manuals Downloadable

General Specifications

• Operating voltage 14.4V (10.5 ~ 16V Allowable)
• Maximum Current Consumption 10A
• Dimensions (WxHxD)  182 x 53 x 100mm
• Weight 700 gr.
